High-performance solution
All materials can be cut, but they cannot be mixed and cut separately wet and dry integration;
All materials can be cut, but they cannot be mixed and cut separately wet and dry integration;

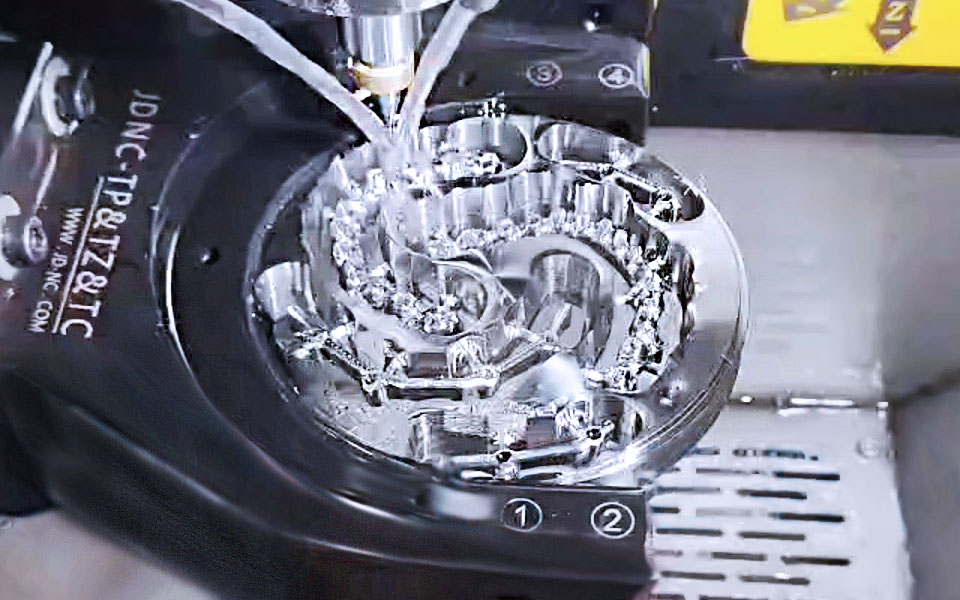

The spindle has high power and can cut titanium plates. It can process multiple materials at the same time while ensuring fast speed, achieving high precision and completeness.
Intelligent water cooling control system, water tank + water pump, active cooling through the water circulation mechanism.
Material
Fields of application：Wet/Dry machining
Materials：Glass ceramics, Titanium, Cobalt chromium, Nickel chromium, Zirconium oxide, Wax disc, PMMA
Machine bed made of solid cast aluminum body
Housing：Sheet steel housing, white high-gloss lacquer finish
Number of axes：5
X-axis working range：200mm
Y-axis working range：105mm
Z-axis working range：105mm
Lighting：RGB LED lighting with status display in the working chamber.
High-frequency spindle, synchronous with pneumatic tool clamping
Sealing air to prevent debris from entering
Speed：Up to 60,000 rpm/min
Power：Peak power (Pmax): 2000 watts. nominal power: 1800 watts
All models:CE, VDE
North America model:UL, FCC
5-axis linkage, Wet/dry milling
Processing time：Full crown < 15 min, 3-unit bridge < 30 min
Processable material thickness：10-30 mm
Tool magazine type/time：Retractable tool magazine/2S
Rated Power/Speed:500W/60000RPM
Spindle Speed:60000rpm/min
Power:1800 watts
Operating temperature:Between 10℃ and 35℃
Air pressure:0.5-0.8Mpa
Dimensions(W/D/H)：750x780x1500mm with open flap and drawer
Footprint (W/D)：480x580 mm
Weight：320 kg
DS100 Machine
CAM Software
Accessories：Spindle service set. calibration set incl. stirrup measuring screw - working area crevice nozzle - tool magazine inserts (2 pieces). spare screws. tool magazine cover. wrenches. emergency release key. drill bit (tool positions). measuring pin. compressed air hose with pressure reducer. power cable.Ethernet network cable. carrying aid for transporting the machine. operating manual.
Tool change
Tool magazine for 12 tools.
